Add an Azure AI Search Vector Store

In this guide, we will walk you through the process of integrating an Azure-hosted AI Search instance as an asset in Dataster. This includes configuring the necessary API permissions, creating a vector index, and adding the vector store to the Dataster Vector Store catalog. Specifically, we will index a set of movies along with their titles, years, summaries, and vectorized representations of the summaries. By the end of this guide, you will have a fully functional vector store in Dataster that can be used to create a Retrieval-Augmented Generation (RAG) system.

Prerequisites

1. An AI Search resource has been created in Azure.
2. The resource is publicly accessible.

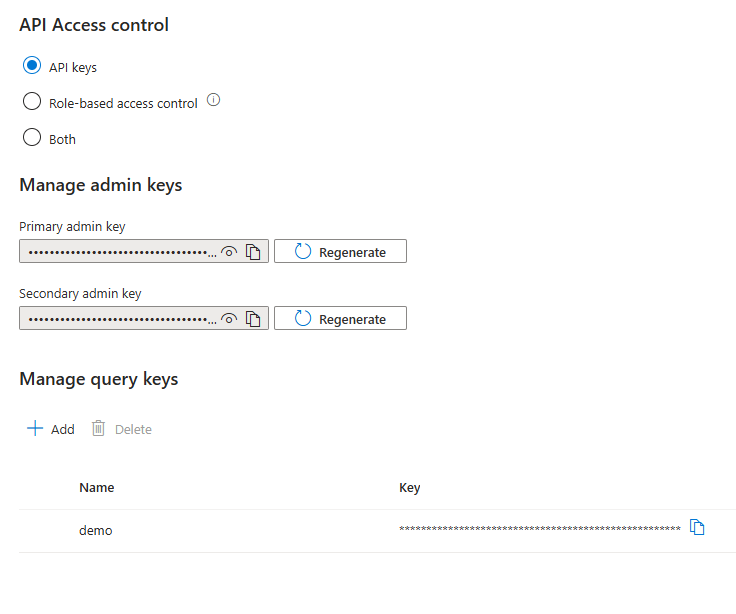

Step 1: Create a Query Key

1. Ensure to create a query key.
2. Optionally generate an admin key if the index needs to be created.

Step 2: Create a Vector Index

1. Create a vector index within the resource.
2. Name the index "movies" and the vector field "vector".
3. Index movies with their titles, years, summaries, and a vectorized representation of their summaries.
4. Use the hnsw algorithm and set the dimensions to 1,536, as we will use the OpenAI text-embedding-3-small model for embeddings. Note that dimensions may vary with different embedding models.
5. Choose cosine distance for the vector similarity measure.

{
  "name": "movies",
  "fields": [
    {
      "name": "id",
      "type": "Edm.String",
      "key": true,
      "retrievable": true,
      "stored": true,
      "searchable": false,
      "filterable": false,
      "sortable": false,
      "facetable": false,
      "synonymMaps": []
    },
    {
      "name": "title",
      "type": "Edm.String",
      "key": false,
      "retrievable": true,
      "stored": true,
      "searchable": true,
      "filterable": false,
      "sortable": false,
      "facetable": false,
      "analyzer": "standard.lucene",
      "synonymMaps": []
    },
    {
      "name": "summary",
      "type": "Edm.String",
      "key": false,
      "retrievable": true,
      "stored": true,
      "searchable": true,
      "filterable": false,
      "sortable": false,
      "facetable": false,
      "analyzer": "standard.lucene",
      "synonymMaps": []
    },
    {
      "name": "vector",
      "type": "Collection(Edm.Single)",
      "key": false,
      "retrievable": false,
      "stored": true,
      "searchable": true,
      "filterable": false,
      "sortable": false,
      "facetable": false,
      "synonymMaps": [],
      "dimensions": 1536,
      "vectorSearchProfile": "vector-profile-1735587575124"
    }
  ],
  "scoringProfiles": [],
  "suggesters": [],
  "analyzers": [],
  "tokenizers": [],
  "tokenFilters": [],
  "charFilters": [],
  "normalizers": [],
  "similarity": {
    "@odata.type": "#Microsoft.Azure.Search.BM25Similarity"
  },
  "vectorSearch": {
    "algorithms": [
      {
        "name": "vector-config-1735587576288",
        "kind": "hnsw",
        "hnswParameters": {
          "m": 4,
          "efConstruction": 400,
          "efSearch": 500,
          "metric": "cosine"
        }
      }
    ],
    "profiles": [
      {
        "name": "vector-profile-1735587575124",
        "algorithm": "vector-config-1735587576288"
      }
    ],
    "vectorizers": [],
    "compressions": []
  },
  "@odata.etag": "\"0x8DD2909B8B2459F\""
}

Step 3: Ingest Data

1. Ingest the following movies and their vectorized summaries:
[ { "title": "The Shawshank Redemption", "year": 1994, "summary": "Two imprisoned men bond over a number of years, finding solace and eventual redemption through acts of common decency." }, { "title": "The Godfather", "year": 1972, "summary": "The aging patriarch of an organized crime dynasty transfers control of his clandestine empire to his reluctant son." }, { "title": "The Dark Knight", "year": 2008, "summary": "When the menace known as the Joker emerges from his mysterious past, he wreaks havoc and chaos on the people of Gotham." }, { "title": "Pulp Fiction", "year": 1994, "summary": "The lives of two mob hitmen, a boxer, a gangster and his wife, and a pair of diner bandits intertwine in four tales of violence and redemption." }, { "title": "Inception", "year": 2010, "summary": "A thief who steals corporate secrets through the use of dream-sharing technology is given the inverse task of planting an idea into the mind of a CEO." } ]

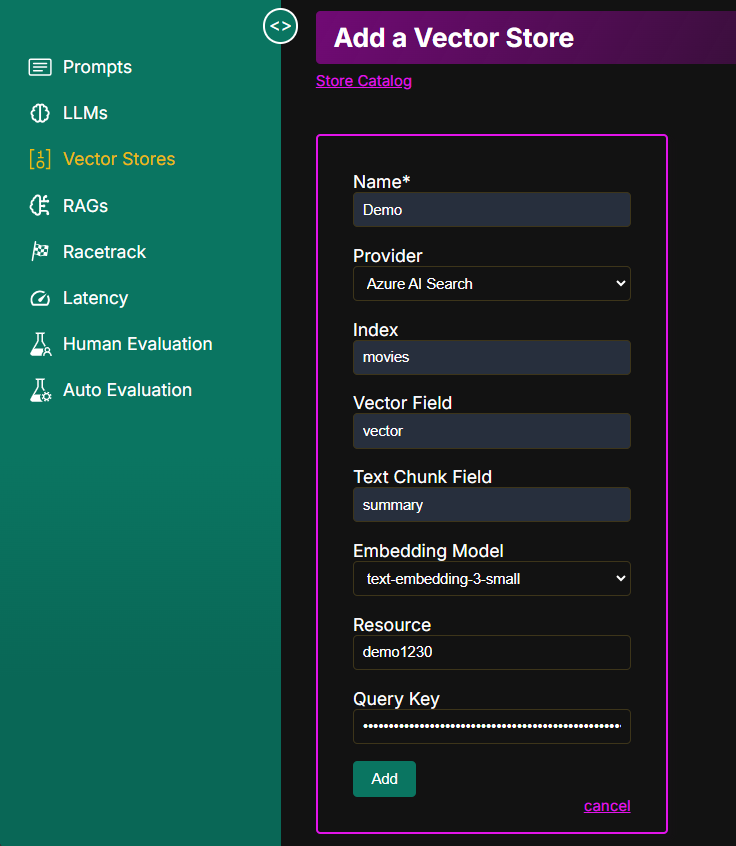

Step 4: Add Vector Store

1. Navigate to the Dataster Vector Store catalog.
2. Add the Azure AI Search Vector store.
3. Specify the embedding model used to create the vectors.

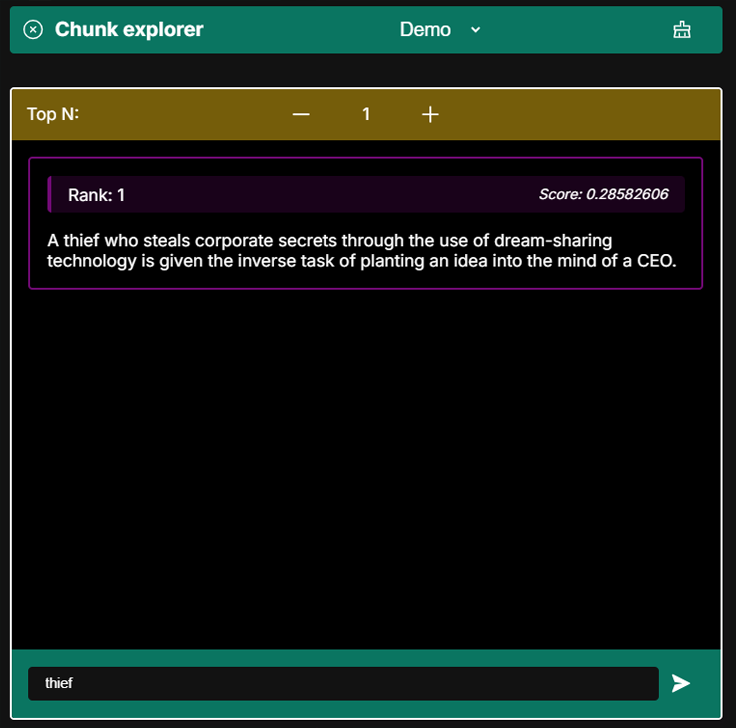

Step 5: Explore Chunks

1. Use the explorer to examine the chunks.

Conclusion

You have successfully set up Azure AI Search as a Vector Store in Dataster. This setup is a preliminary step that will enable you to create a Retrieval-Augmented Generation (RAG) system by combining this Vector Store with the Large Language Model (LLM) of your choice and a system prompt.

If you encounter any issues or need further assistance, please contact our support team at support@dataster.com.
